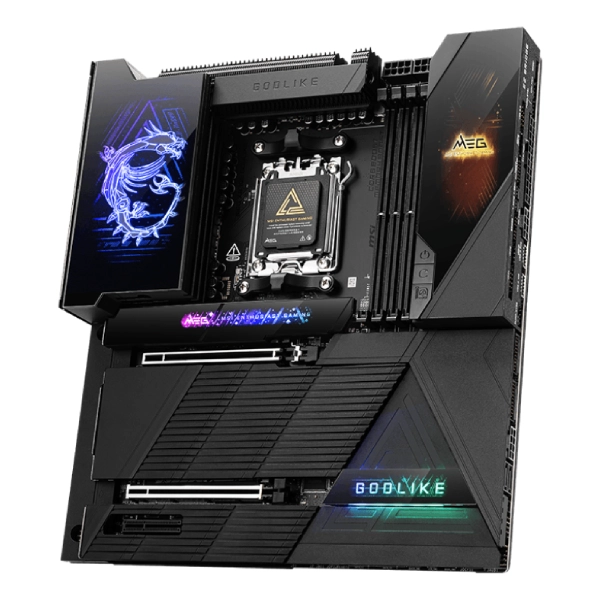

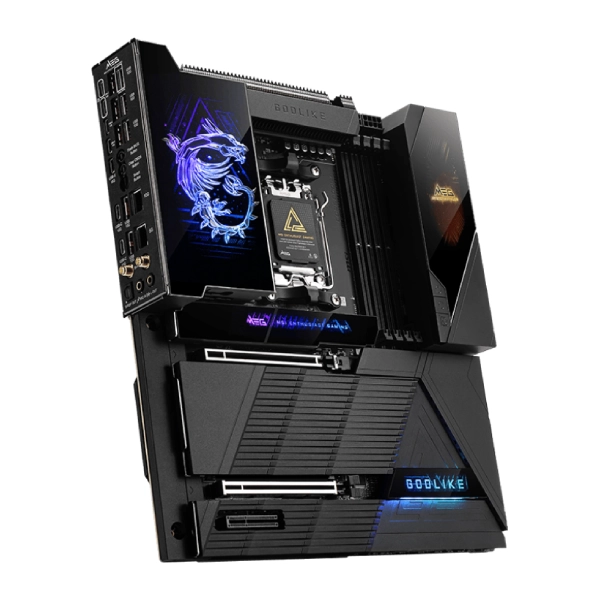

MSI MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard
৳168,500.00
৳168,500.00
-0% OFF
auto_awesome
Key Features
verified
Verified technical specs below
check_circle In Stock & Ready to Ship
search
memory
Technical Specifications
Verified hardware and engineering details for MSI MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard
search
0 matches
tune
Basic Information
expand_more
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors, Socket AM5
Chipset
AMD X870E
Form Factor
E-ATX, 304.8mmx277mm
Audio
Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA, 7.1-Channel USB High-Performance Audio, Supports S/PDIF output, Supports up to 32-Bit/384 kHz playback on front panel
cable
Expansion Slots
expand_more
PCI
2x PCI-E x16 slot, 1x PCI-E x4 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 & PCI_E2 slots, • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors), • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors), • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors), PCI_E3 slot, • Supports up to PCIe 4.0 x4
M.2 Socket
7x M.2, M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices, M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 4x SATA 6G, M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices, M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices, M.2_1:, • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors), M.2_2:, • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors), • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors., M2_4:, PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
dns
Memory
expand_more
Type
DDR5
Slots
4x UDIMM
Supported Memory
Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s, Ryzen 9000 Series Processors max. overclocking frequency:, • 1DPC 1R Max speed up to 8400+ MT/s, • 1DPC 2R Max speed up to 6400+ MT/s, • 2DPC 1R Max speed up to 6400+ MT/s, • 2DPC 2R Max speed up to 4800+ MT/s, Supports AMD POR Speed and JEDEC Speed, Supports Memory Overclocking and AMD EXPOTM, Supports Dual-Channel mode, Supports Non-ECC, Un-buffered memory, Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory
256GB
videogame_asset
Graphics
expand_more
Graphics
Supports NVIDIA SLI Technology, Supports AMD MULTI-GPU
cable
Connector & Ports
expand_more
Display Port (s)
2x Type-C DisplayPort, USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
USB (s)
4x USB 2.0 (Front), 4x USB 5Gbps Type A (Front), 8x USB 10Gbps Type A (Rear), 5x USB 10Gbps Type C (Rear), 1x USB 10Gbps Type C (Front), 1x USB 20Gbps Type C (Front), 2x USB 40Gbps Type C (Rear)
LAN Port (s)
1x Marvell® AQC113CS 10Gbps LAN, 1x Realtek® 8126 5Gbps LAN
Wireless Communication module
Wi-Fi 7 Solution, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, Supports Bluetooth® 5.4**, MLO, 4KQAM
Supported Storage
7x M.2, M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices, M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 4x SATA 6G, M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices, M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices, , M.2_1:, • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors), M.2_2:, • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors), • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors., M2_4:, PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
RAID
Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices, Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x Front Type-C Quick Charge Connector(PD_PWR1), 1x CPU Fan, 2x Combo Fan (Pump_Sys Fan), 1x EZ Conn-header (JAF_2), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 2x Thermal Sensor connectors(T_SEN), 1x Tuning Controller connector(JDASH), 1x Addressable V2 RGB LED connector (JARGB_V2), V-check point, 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports, 1x USB 20Gbps Type C ports
tune
Others
expand_more
Special Features
LED FEATURE 1x Dynamic Dashboard III, 1x EZ Digit Debug LED, 1x EZ LED Control switch
verified_user
Warranty Information
expand_more
Manufacturing Warranty
3 Years
search_off
No specifications matched your query
Try checking for spelling errors or search for common terms like "display", "processor", "battery".
article
Product Overview & Description
In-depth overview, architecture, and feature highlights of MSI MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard
MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard
The MSI MEG X870E GODLIKE E-ATX Motherboard is a technological marvel designed to improve your computing experience. Built on the AMD X870E chipset, this MSI AMD motherboard is compatible with AMD Ryzen 9000, 8000, and 7000 Series desktop processors that use the AM5 socket. With a maximum memory capacity of 256GB and four DDR5 UDIMM slots, it supports DDR5 9000–5600 (OC) MT/s to DDR5 4800 (JEDEC) MT/s. Performance aficionados will love the MSI MEG X870E GODLIKE Motherboard's remarkable overclocking capabilities. Strong performance and dependability are guaranteed by dual-channel mode support and compatibility with non-ECC, un-buffered memory, and CUDIMM. Two Type-C DisplayPort USB4 connections with a maximum resolution of 4K@60Hz and support for DisplayPort 1.4 with HBR3 over USB Type-C are part of the onboard graphics. With two PCI-E x16 slots and one PCI-E x4 slot, the MSI DDR5 Motherboard expands seamlessly and supports PCIe 5.0 and 4.0, enabling a flexible configuration with Ryzen 9000, 8000, or 7000 Series processors. With the Realtek ALC4082 Codec and ESS9219Q Combo DAC/HPA, the MSI MEG X870E Godlike AM5 E-ATX Motherboard offers 7.1-Channel USB high-performance audio, S/PDIF output, and 32-Bit/384 kHz playback on the front panel. With four SATA 6G connections and seven M.2 slots, this device offers a wide range of storage options and supports PCIe 5.0 and 4.0 for fast data transfer. RAID configurations are also supported by the MSI MEG X870E GODLIKE Motherboard, guaranteeing data redundancy and performance enhancement. Multiple USB connections, including USB 2.0, 5Gbps, 10Gbps, 20Gbps, and 40Gbps Type-C choices, provide excellent connectivity. Wi-Fi 7 and Bluetooth 5.4 compatibility, combined with a 10Gbps Marvell AQC113CS LAN and a 5Gbps Realtek 8126 LAN, provide this AM5 motherboard with state-of-the-art wireless capabilities. To meet demanding cooling and customization requirements, internal IO comprises RGB LED connectors, fan headers, and several power connectors. Advanced LED features like the EZ Digit Debug LED and Dynamic Dashboard III are included on the motherboard. The best option for building a powerful, feature-rich PC is the MSI MEG X870E GODLIKE AM5 E-ATX Motherboard, which is made for Windows 11 64-bit.
Dynamic Dashboard III
The MSI MEG X870E GODLIKE Motherboard's 3.99-inch full-color LCD greatly improves the user experience by providing real-time hardware monitoring, troubleshooting, BIOS update status, clock display, and customization choices. The majority of the case front panel headers, fan headers, and RGB headers are combined into the EZ Bridge and EZ Control Hub by the GODLIKE-only EZ Link design, which makes installation easier and produces a neater look. The highest performance at low temperatures is guaranteed by the Double-Sided M.2 Shield Frozr, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Wavy fin design, and Frozr AI software.
Buy MSI MEG X870E GODLIKE Motherboard from Star Tech
In Bangladesh, you can get original MSI MEG X870E GODLIKE Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard comes with 3 years warranty.
